Fig. 6
From: Genomics of hybrid parallel origin in Aquilegia ecalcarata

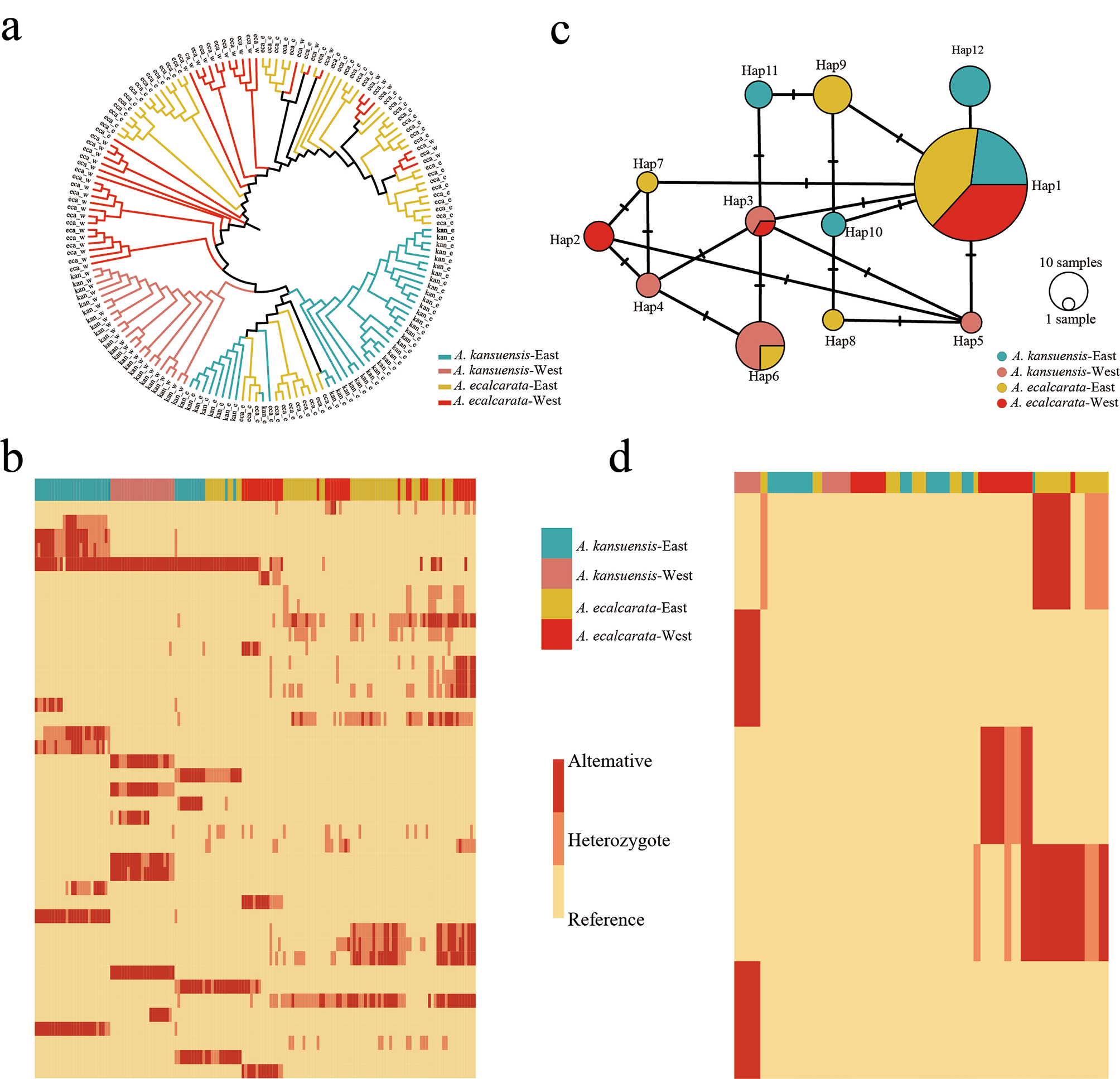

Phylogeny and haplotype analysis of PIA2 and POPVICH genes. (a) The ML phylogenetic tree of PIA2 gene in all individuals of A. ecalcarate and A. kansuensis, Jones-Taylor-Thornton model. (b) Heatmap analysis of PIA2 gene. Each row represents a genomic position for all accession, and the column represents a individual. (c) Median-joining network of POPVICH gene haplotypes. The areas of the circles are proportional to the number of individuals. (d) Heatmap analysis of POPVICH gene. Each row represents a genomic position for all accession, and the column represents a individual
